Area

All groups can be assigned to an area. Each area must first be released so that a group is active.

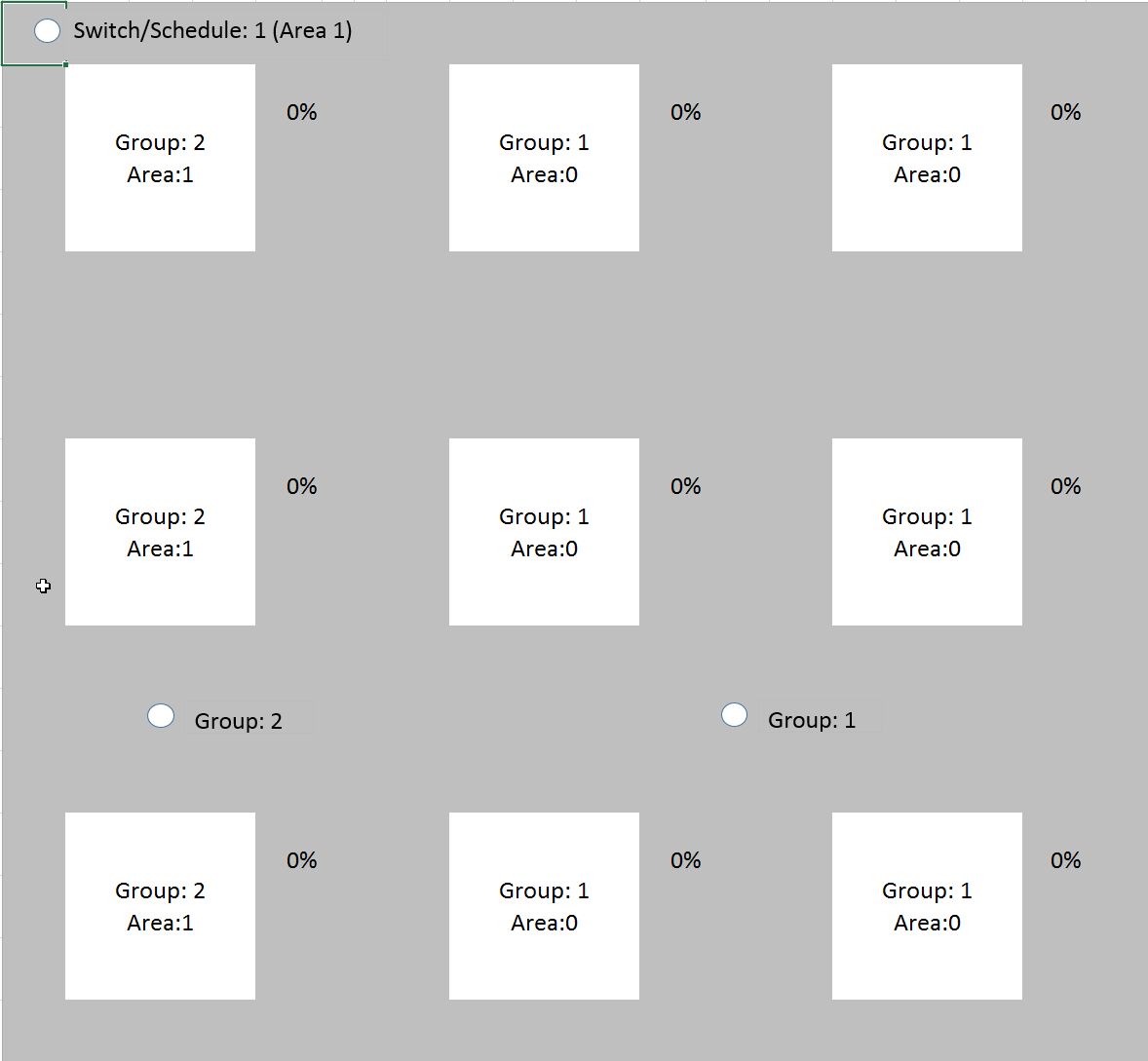

In the first illustration, group 1 is not assigned to any area. Group 2 belongs to area 1. No push-button or schedule that switches area 1 is currently active.

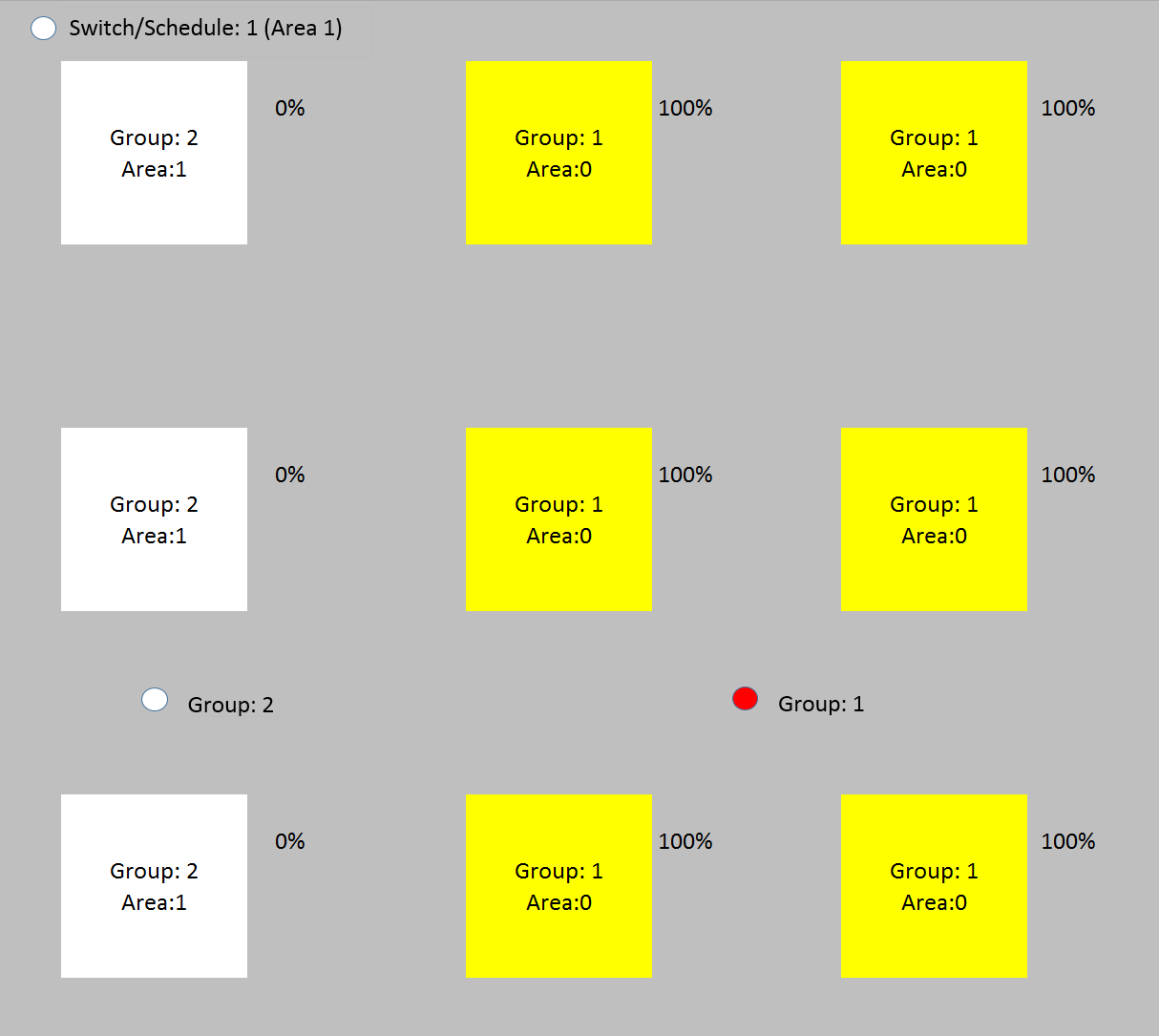

In the next illustration, the sensor for group 1 has triggered and the light is switched on. This group is activated directly without an area assignment.

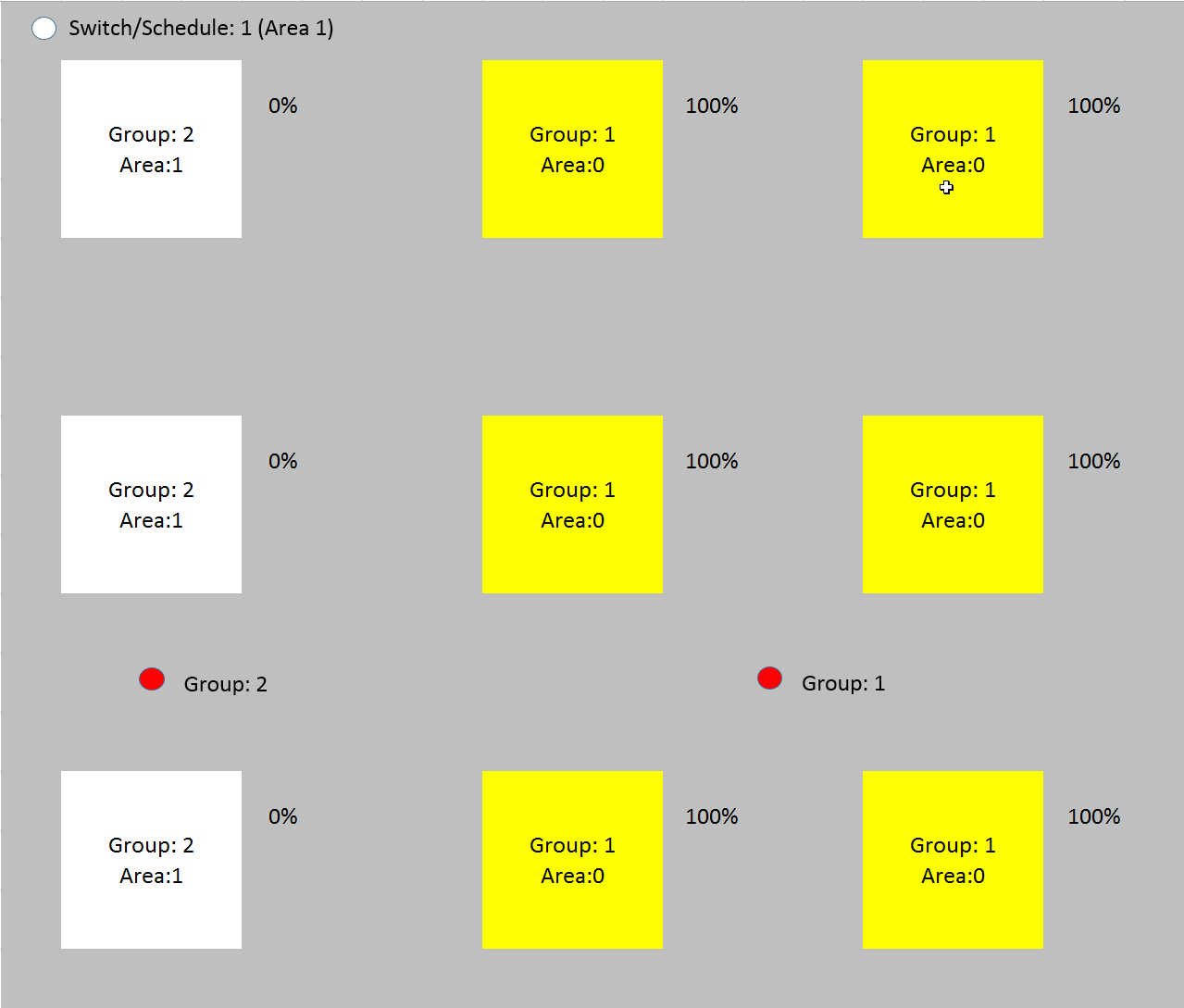

In the following illustration, the sensor for group 2 has now also triggered. The light remains off because the area has not yet been activated.

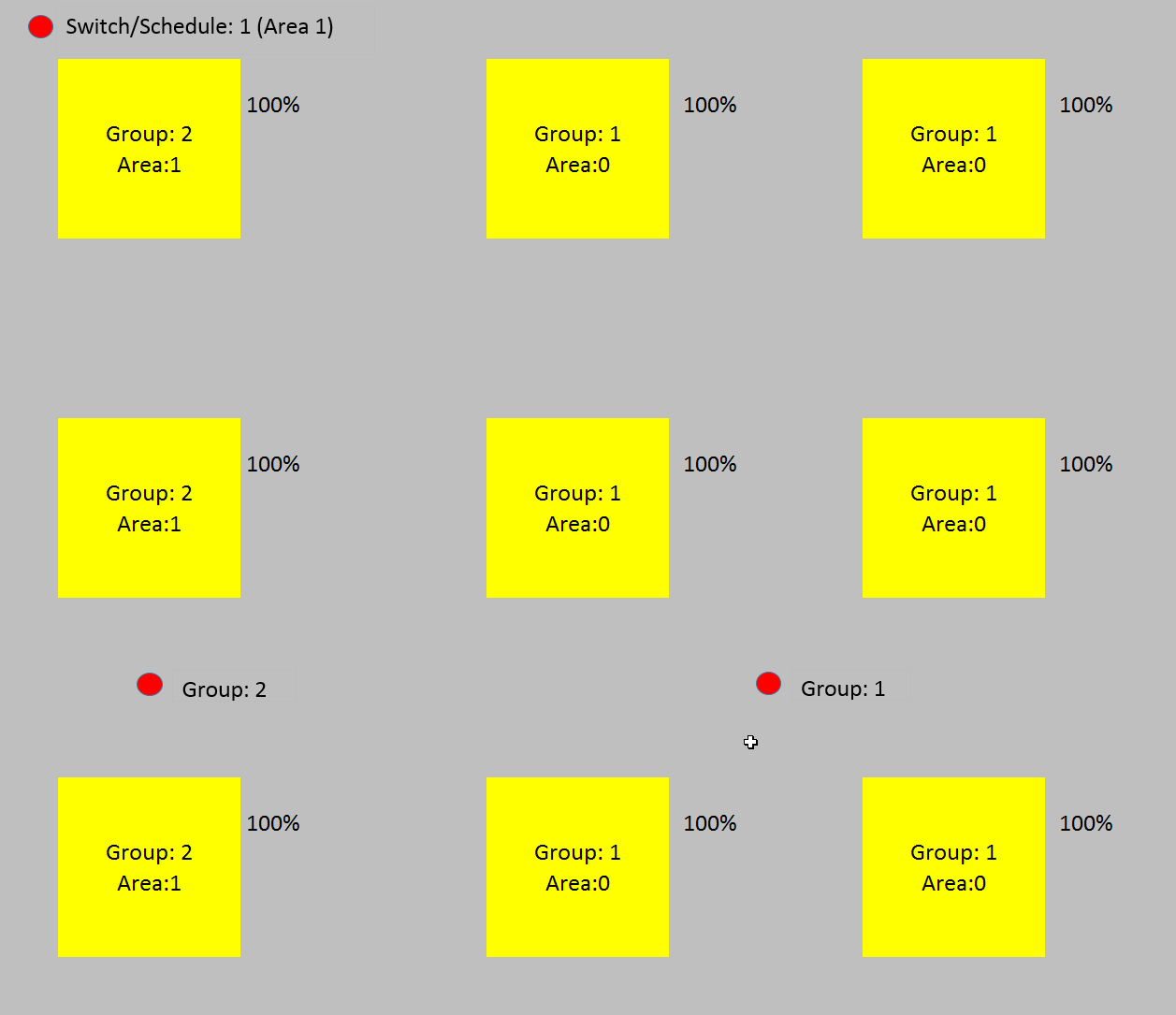

In the last illustration, the area is activated via a push-button/schedule. Group 2 is switched on.
