Creating a TwinCAT configuration

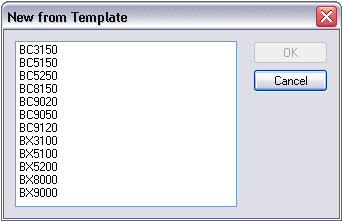

In order to configure a Bus Terminal Controller of the BCxx50, BCxx20, BXxx00 or BC9191 series, create a BX file in the System Manager. To simplify matters, files for the basic units have already been prepared. Open the corresponding Bus Terminal Controller with New from Template.

Select the corresponding Bus Terminal Controller.

All Bus Terminal Controller components are now available:

• Fieldbus interface
• K-bus interface
• PLC program
• SSB (only Bus Terminal Controllers of the BX series)

Please refer to the relevant chapter for device configuration.
