KL1002, KL1012 – Introduction

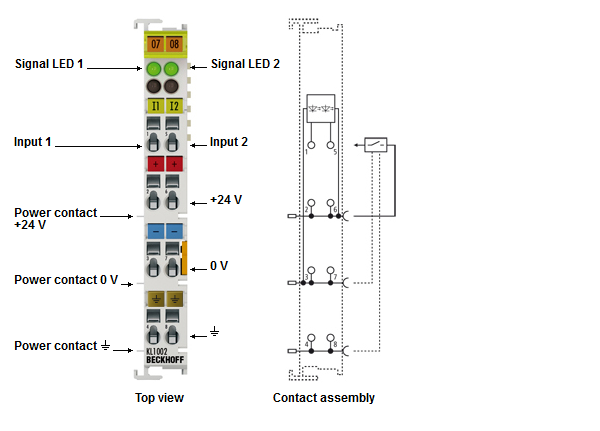

Fig.1: KL1002

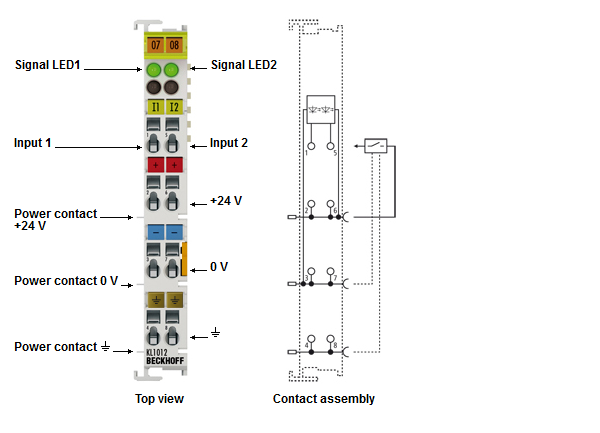

Fig.2: KL1012Bus terminal, 2-channel digital input, 24 VDC
The KL1002 and KL1012 digital input terminals acquire the binary control signals from the process level and transmit them, in an electrically isolated form, to the higher-level automation device. The KL1002 and KL1012 versions have input filters of different speeds. The bus terminals contain two channels that indicate their signal state by means of light emitting diodes.
