Dimensions
The following illustrations show the dimensions of the Bus Couplers.
Drawings in DWF and STEP format can be found in the Download section of the Beckhoff website.

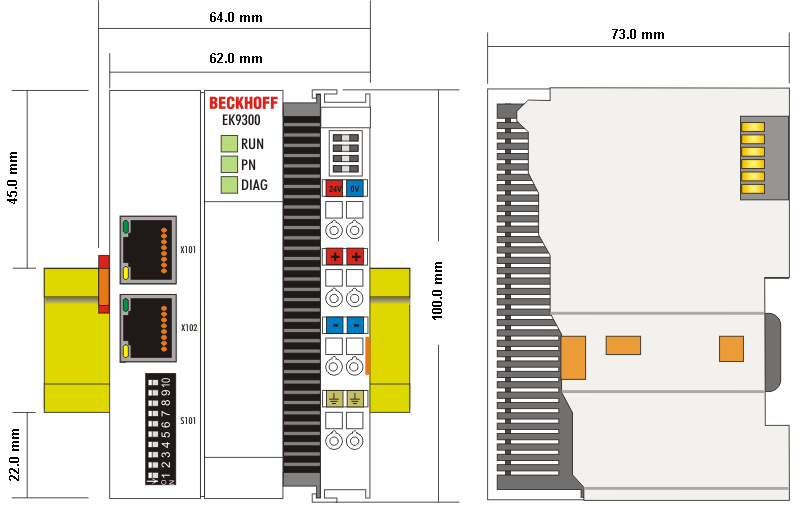

Fig.7: EK9xxx – dimensions taking the EK9300 as an exampleEK9500 | EtherNet/IP™-Bus Coupler for EtherCAT Terminals · 0 次阅读
Fig.7: EK9xxx – dimensions taking the EK9300 as an example
