Match Contours 1vsN

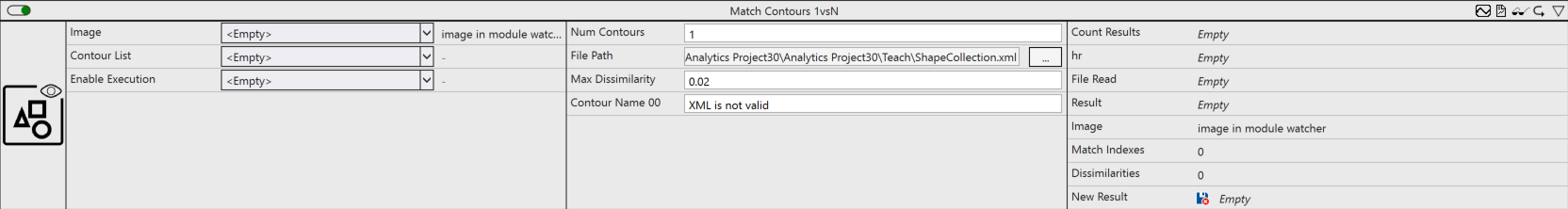

Match Contours 1vsN 1:

Compares contours with contours previously saved in a file.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Num Contours: Number of contours with which the input contour is to be compared.
  • File Path: File path of an XML file in which contours were saved.
  • Max Dissimilarity: Maximum distance between the original contour and its approximation.
  • Contour Name 00..n: Alias names of the contours.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • File Read: TRUE if the file was read successfully.
  • Result: Output of the best matching contour name if the maximum dissimilarity is not exceeded.
  • Image: Initial image of the algorithm.
  • Match Indexes: Listing of the indexes of the contours. Sorted by equality.
  • Dissimilarities: Listing of the inequality of the contours. Sorted by equality.
  • New Result: (Optional) TRUE if a new result is provided.
