Axis control loop

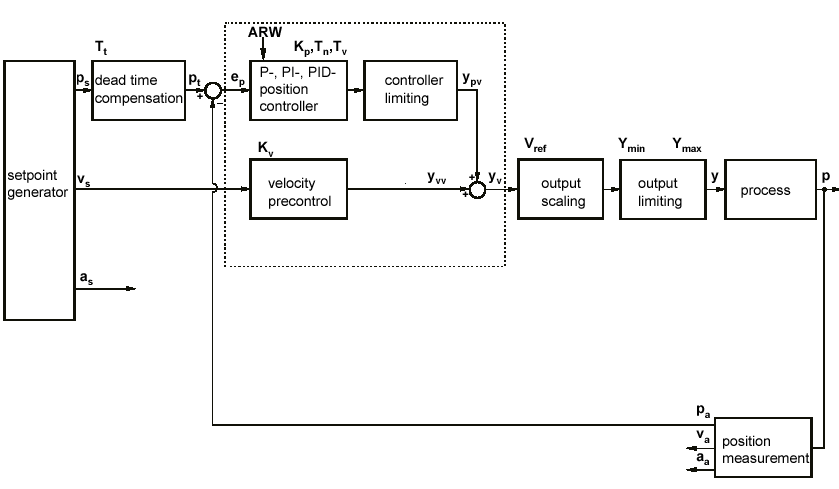

Standard axis control loop (servo drive)

Axis control loop 1:

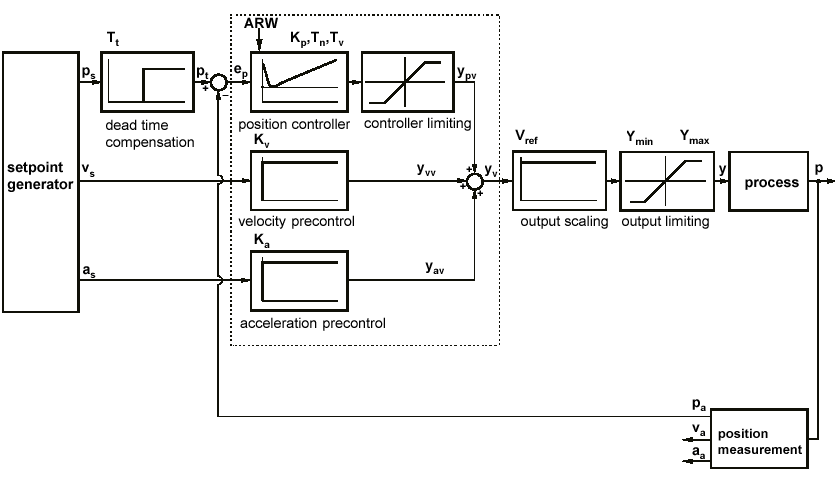

Extended axis control loop (servo drive)

Axis control loop 2:

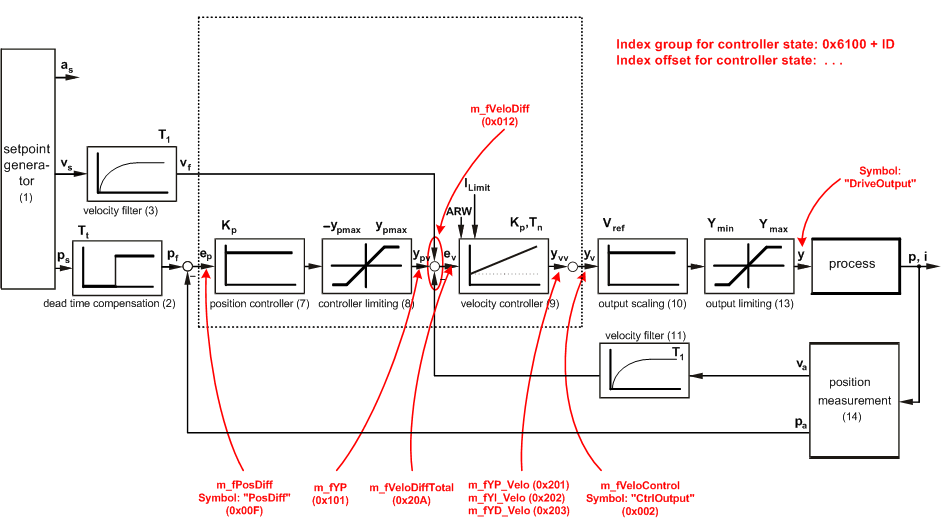

Simplified position and velocity control loop with current/moment interface (servo drive)

Axis control loop 3:

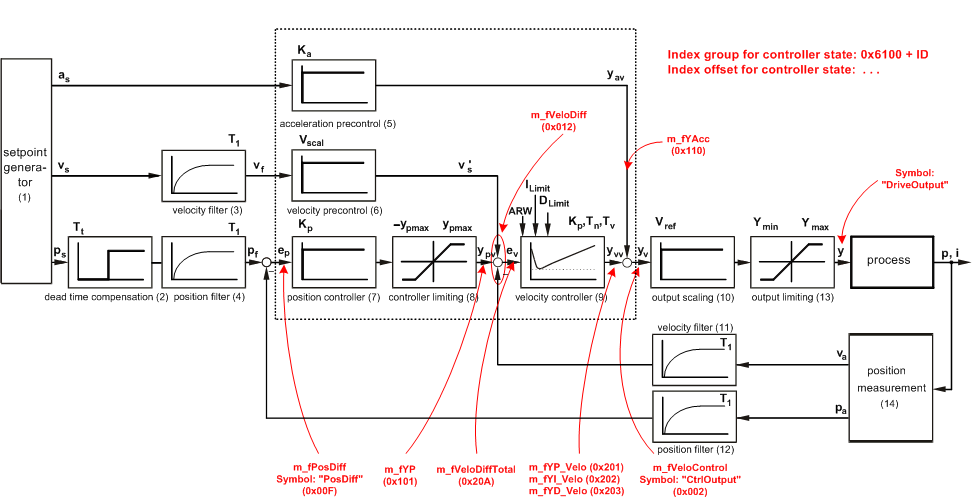

Extended position and velocity control loop with current/moment interface (servo drive)

Axis control loop 4:
