KS2000 Settings
The dialog masks for parameterizing the KL6201/KL6211 and AS-i slaves connected to it can be found under Settings.

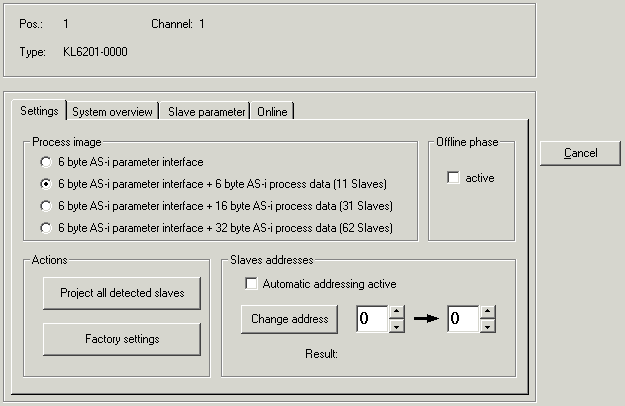

Fig.22: Settings for the KL6201 in the KS2000 configuration softwareSettings
Under this tab you can change the settings of the KL6201/KL6211 and the connected AS-i slaves.
System overview
Select this tab for checking the projecting state of the connected AS-i slaves.
Slave parameters
Select this tab for modifying the Parameters of the connected AS-i slaves.
