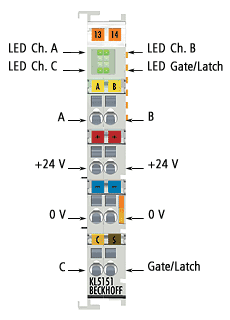

KL5151/KS5151 - Introduction

The KL5151/KS5151 Bus Terminal is an interface with 24 V inputs for the direct connection of incremental encoders. A 32 bit counter with a quadrature decoder and a 32 bit latch for the zero pulse can be read, set or enabled.

The KL5151/KS5151 Bus Terminal can also be used as an up/down counter (32 bit). For this input A works as counter input. Input B sets the counting direction. Input C has to be HIGH to enable the counter functionality
