BX9000 - Introduction

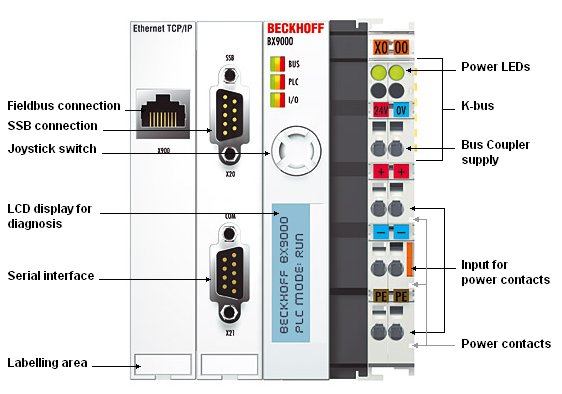

BX9000 - Introduction 1:
BX9000 - Ethernet Modbus TCP/ADS-TCP/UDP

The BX9000 Bus Terminal Controller has an Ethernet slave/master interface and features automatic baud rate detection up to 100 Mbaud. The address can be set via DHCP, BootP, ARP entry or the joystick switch. Inputs and outputs up to 2 kbytes can be exchanged with the controller. The ModbusTCP, ADS/TCP and the ADS/UDP protocols are implemented.
