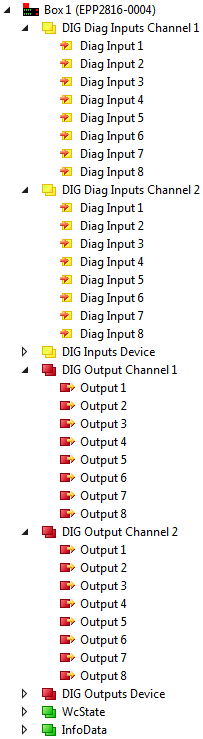

| | X01 | A |  DIG Outputs Channel 1
 Output 1
|  DIG Diag Inputs Channel 1
 Diag Input 1
|
B | DIG Outputs Channel 1
Output 2 | DIG Diag Inputs Channel 1
Diag Input 2 |
C | DIG Outputs Channel 1
Output 3 | DIG Diag Inputs Channel 1
Diag Input 3 |
D | DIG Outputs Channel 1
Output 4 | DIG Diag Inputs Channel 1
Diag Input 4 |
E | DIG Outputs Channel 1
Output 5 | DIG Diag Inputs Channel 1
Diag Input 5 |
F | DIG Outputs Channel 1
Output 6 | DIG Diag Inputs Channel 1
Diag Input 6 |
G | DIG Outputs Channel 1
Output 7 | DIG Diag Inputs Channel 1
Diag Input 7 |
H | DIG Outputs Channel 1
Output 8 | DIG Diag Inputs Channel 1
Diag Input 8 |
I | DIG Outputs Channel 2
Output 1 | DIG Diag Inputs Channel 2
Diag Input 1 |
K | DIG Outputs Channel 2
Output 2 | DIG Diag Inputs Channel 2
Diag Input 2 |
L | DIG Outputs Channel 2
Output 3 | DIG Diag Inputs Channel 2
Diag Input 3 |
N | DIG Outputs Channel 2
Output 4 | DIG Diag Inputs Channel 2
Diag Input 4 |
O | DIG Outputs Channel 2
Output 5 | DIG Diag Inputs Channel 2
Diag Input 5 |
P | DIG Outputs Channel 2
Output 6 | DIG Diag Inputs Channel 2
Diag Input 6 |
R | DIG Outputs Channel 2
Output 7 | DIG Diag Inputs Channel 2
Diag Input 7 |
S | DIG Outputs Channel 2
Output 8 | DIG Diag Inputs Channel 2
Diag Input 8 |
