EL6631, EL6632 | PROFINET CONTROLLER Supplement · 0 次阅读

Integration of the TwinCAT PROFINET controller protocol via a RealTimeEthernet interface

The controller protocol is appended directly to the I/O device. The available network interfaces are directly displayed when appending and are now available for selection.
If these are to be modified or checked afterwards, this can take place on the ‘Adapter’ tab.

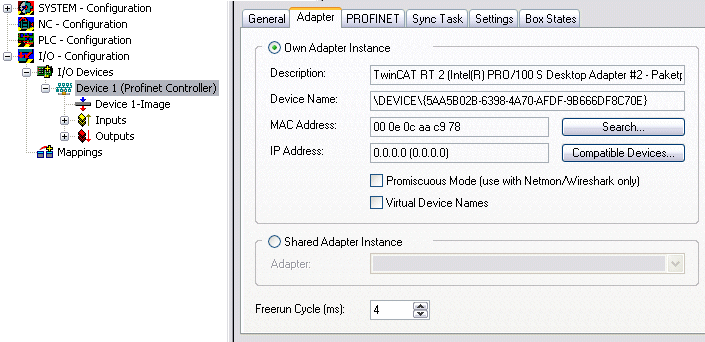

Integration of the TwinCAT PROFINET controller protocol via a RealTimeEthernet interface 1:
"Adapter" tab
