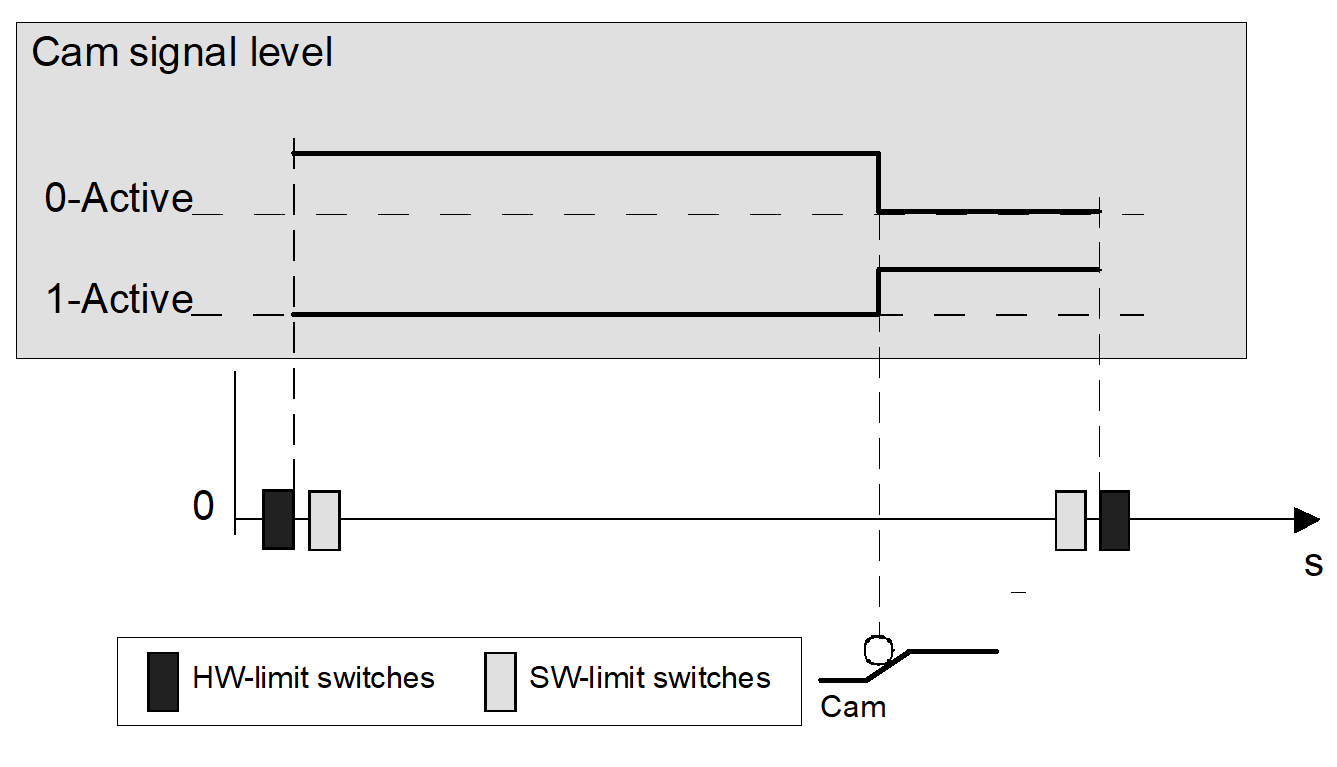

Cam switch signal level
The level when the cam switch is operated can be either logic 0 (0-active) or 1 (1-active). The sequence parameter P-AXIS-00038 (cam_level) sets the level.
P-AXIS-00038 (cam_level) | 0: 0-active 1: 1-active |
