EL6821 - Process data

The available process data objects (PDOs) are displayed in the “PDO List” in the “Process Data” tab. "PDO Content" and "PDO Assignment" of the process data objects cannot be changed for the EL6821. The input process data is assigned to Sync Manager 3 (SM 3), the output process data to Sync Manager 2 (SM 2).

Sync Manager SM 3 "Inputs"

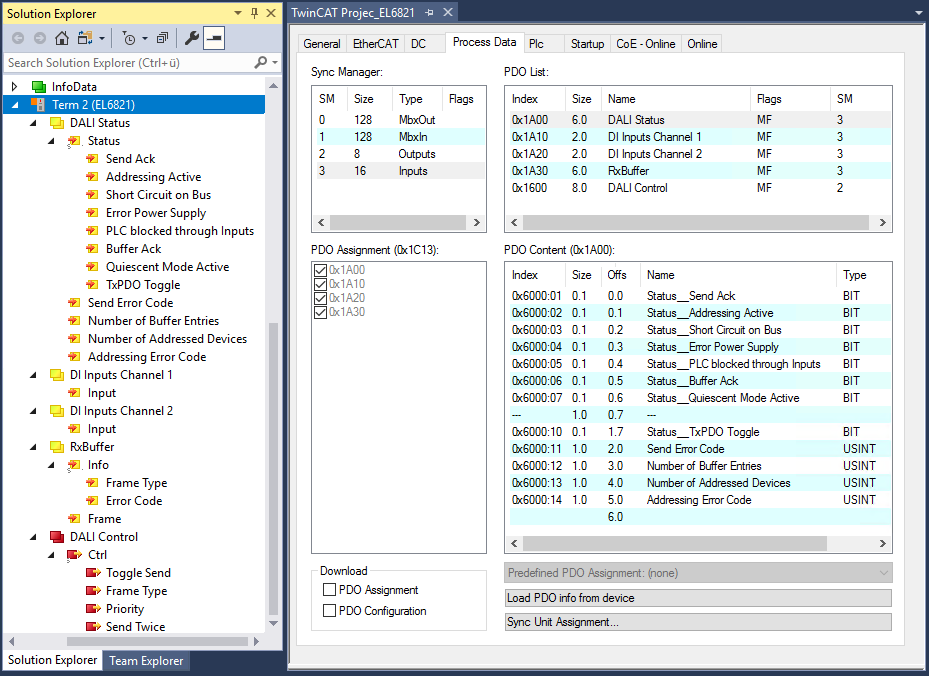

Fig.96: EL6821 – Input process data SM 3

See also:

0x6xxx - Input data

0x1A00 "DALI status",

0x1A10 "DI Inputs Channel 1",

0x1A20 "DI Inputs Channel 1",

0x1A30 "RxBuffer",

0x1600 "DALI Control"

Sync Manager SM 2 "Outputs"

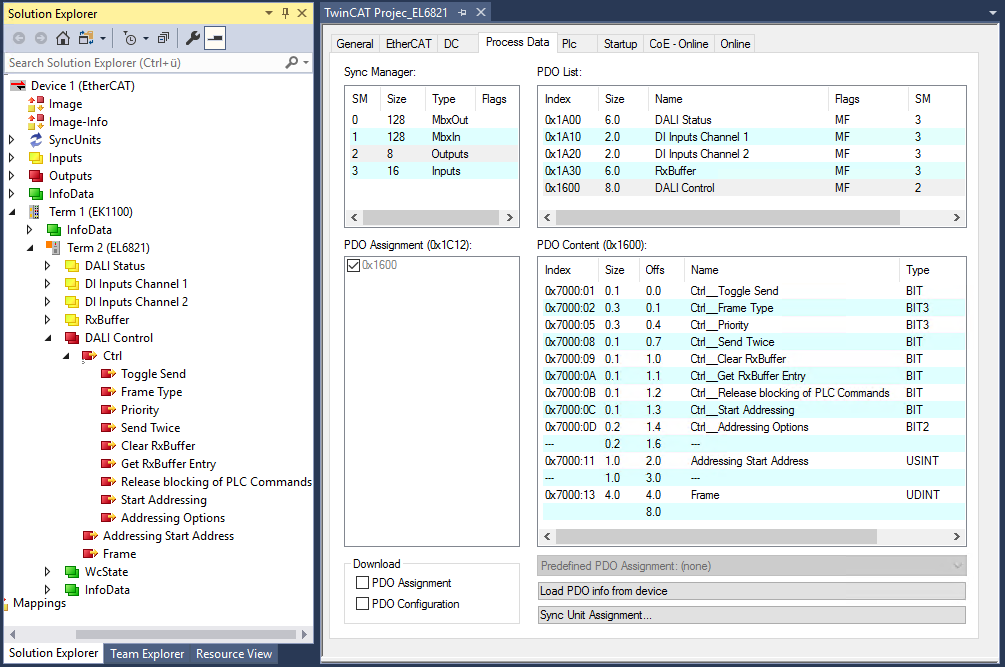

Fig.97: EL6821 – Output process data SM 2

See also:

0x7000 – Output data

0x1600 - "DALI Control"
