TF7xxx - Vision · 0 次阅读

Integrating a PLC library

The Tc3_Vision library contains the data types, functions and function blocks required for image processing.

1. To add them to the PLC project, right-click on References and select Add library...

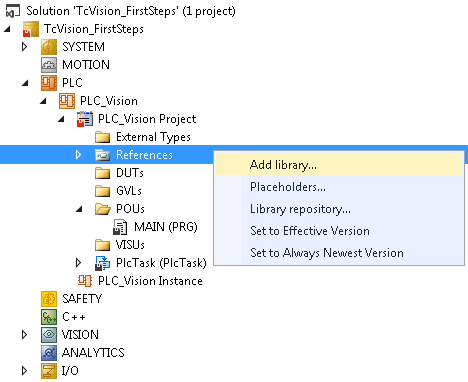

Integrating a PLC library 1:
2. Select the Tc3_Vision library and confirm with OK.

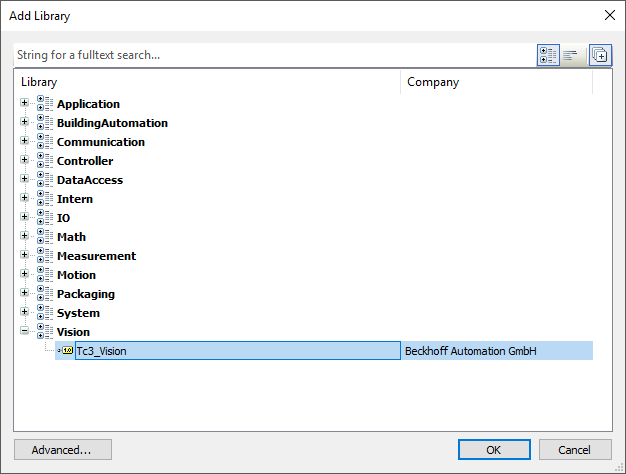

Integrating a PLC library 2:
The library is now added and can be viewed by double-clicking it.

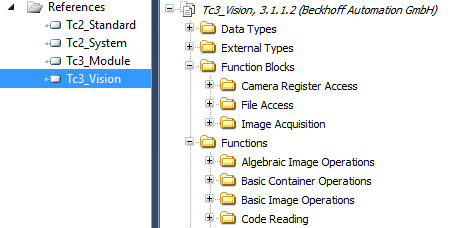

Integrating a PLC library 3:

Next step

Writing a PLC program
