CU20xx, CU22xx – Ethernet switch

Dimensions

▪
CU2005: approx. 73 mm x 100 mm x 38 mm
▪
CU2008: approx. 85 mm x 100 mm x 38 mm
▪
CU2208: approx. 122 mm x 100 mm x 38 mm
▪
CU2016: approx. 146.5 mm x 100 mm x 38 mm

Note
Space requirement in the control cabinet
•
The RJ45 connector increase the depth depending on their design and the Ethernet cable used.
•
Above the mounting rail an additional height of approx. 10 mm is required to enable latching of the switch onto the rail.

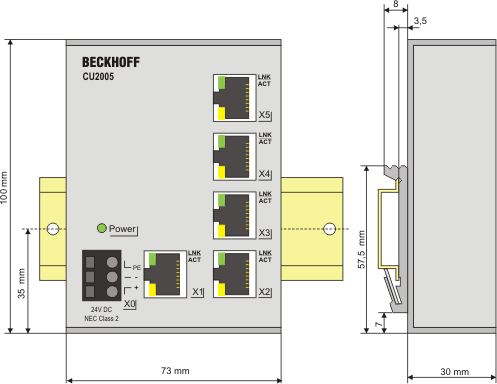

CU2005

CU2005

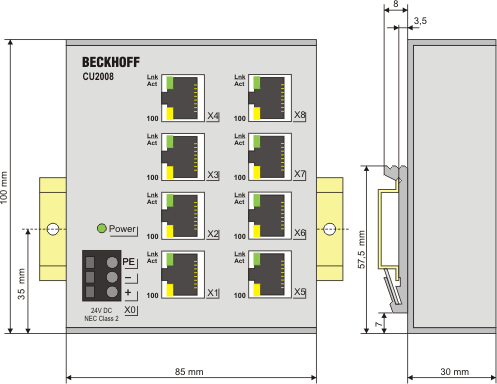

CU2008

CU2008

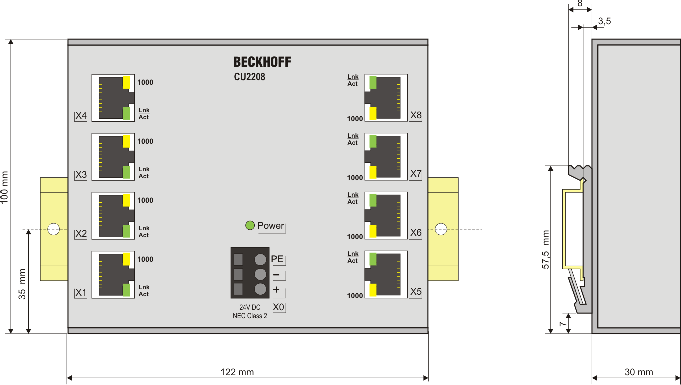

CU2208

CU2208

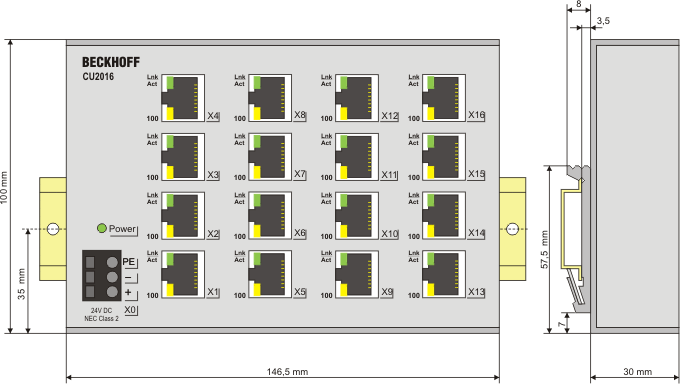

CU2016

CU2016
