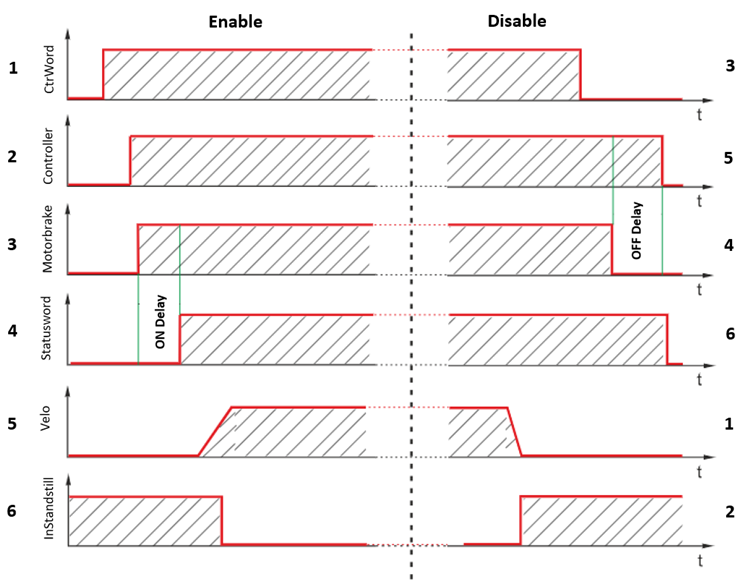

Flow diagram
The following diagram shows the temporal and functional relationship between the enable signal and opening or disable signal and closing of the motor brake.
