AX5000 connection diagram for AL38xx and absolute value encoder

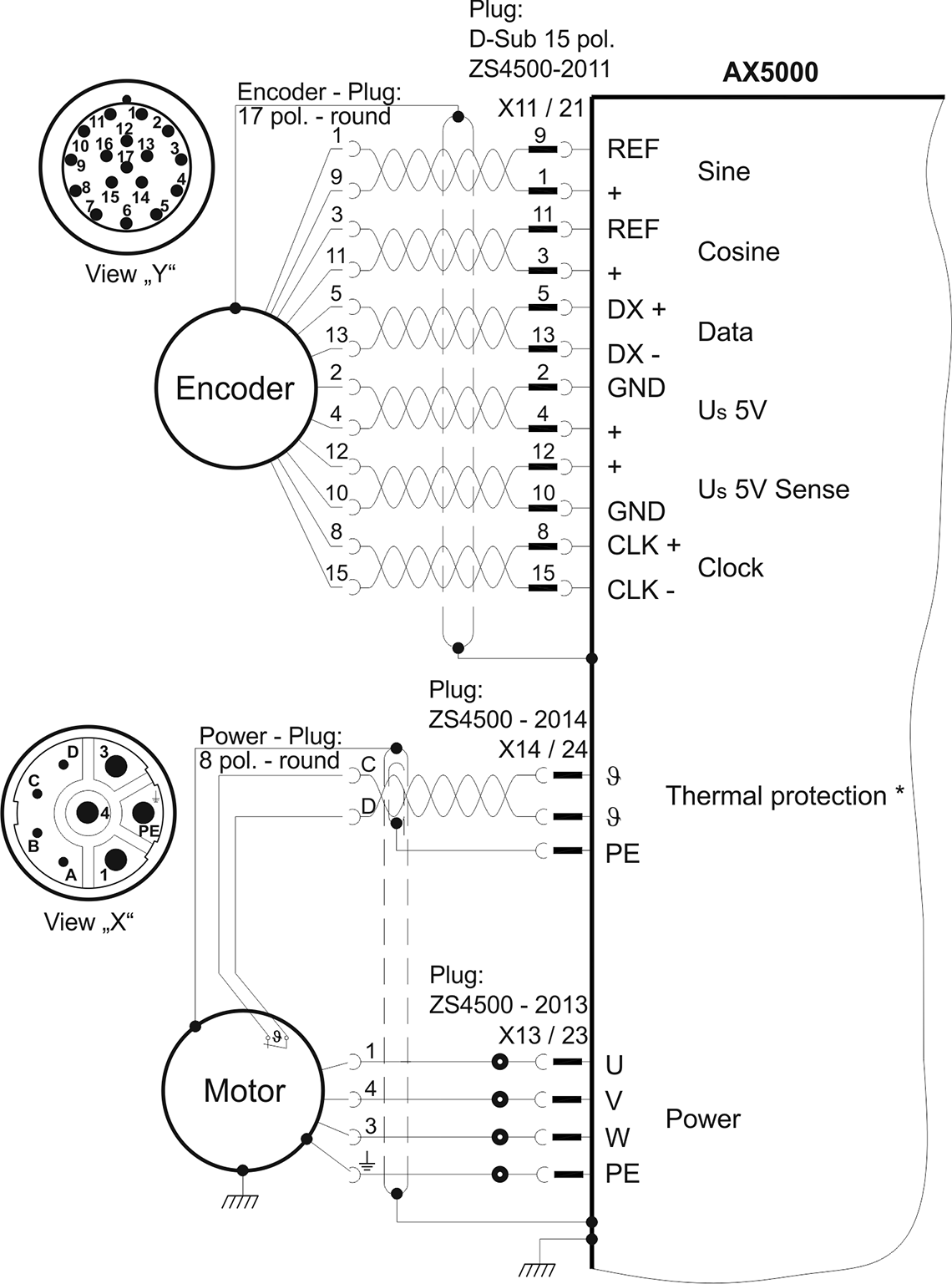

AX5000 connection diagram for AL38xx and absolute value encoder 1:


* If no ConnectorBox is used, the ZK4540-0020-xxxx thermal protection contact cable is additionally required. This is to be connected to X14 / 24.

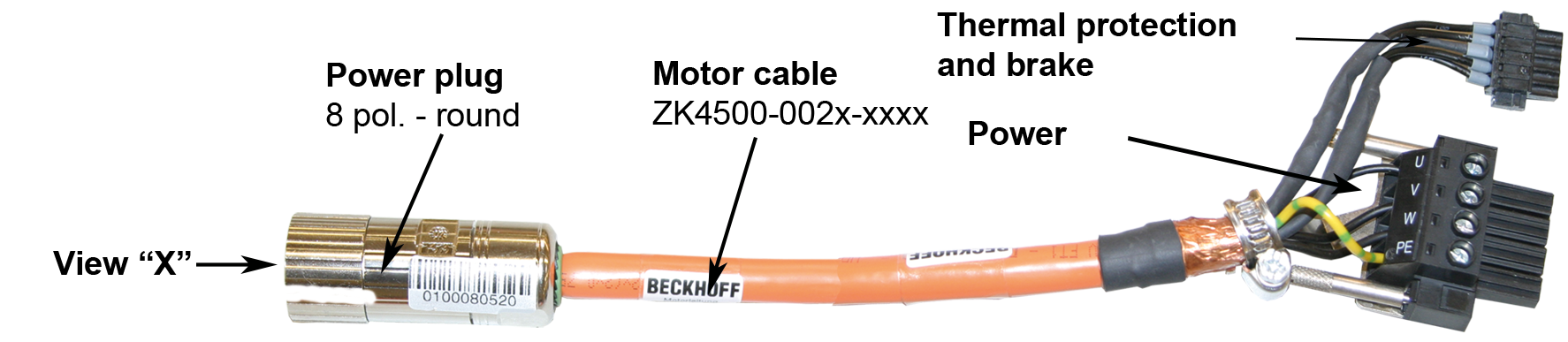

AX5000 connection diagram for AL38xx and absolute value encoder 2:

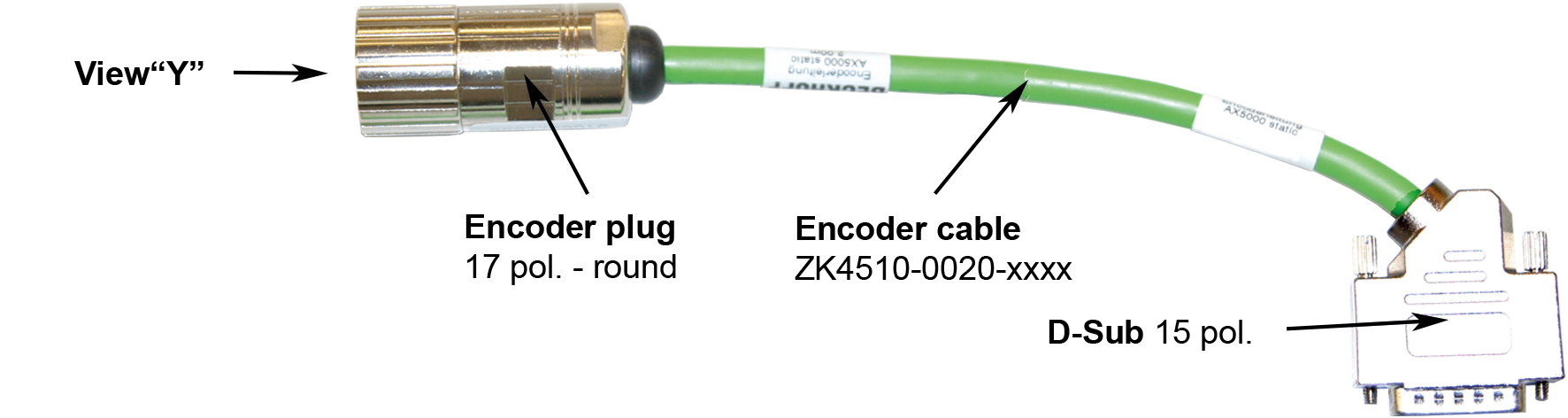

AX5000 connection diagram for AL38xx and absolute value encoder 3:
