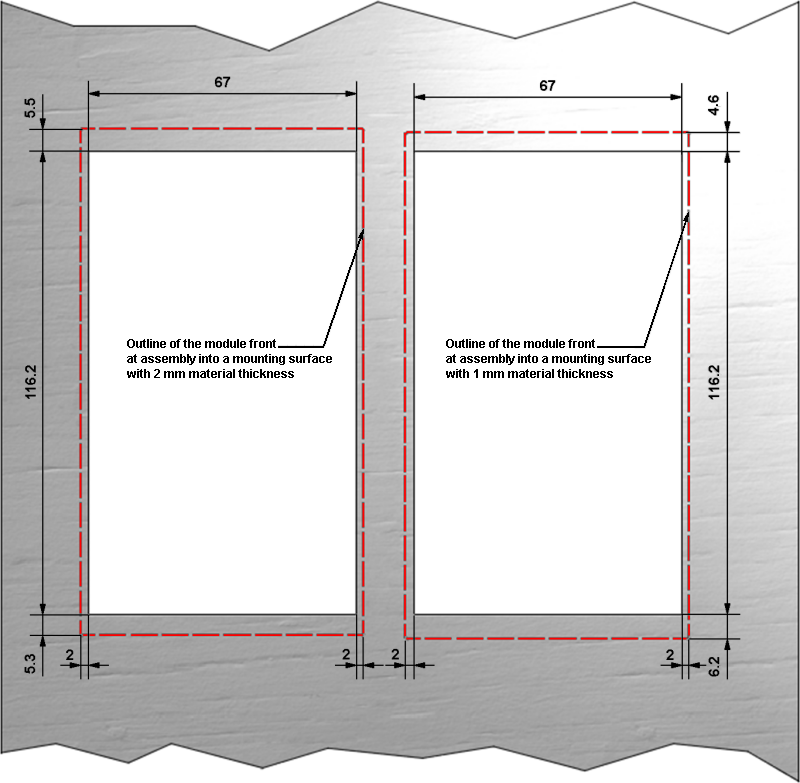

Mounting cut-out
The mounting cut-out should have a size of 67 mm x 116.2 mm.
 | Positioning depends on the wall thickness of the mounting surface The figure shows that different mounting heights arise depending on the wall thickness when installing in the mounting surface. |
