Coordinate system for fixture adaptation (#ACS)
Selection: #ACS ON

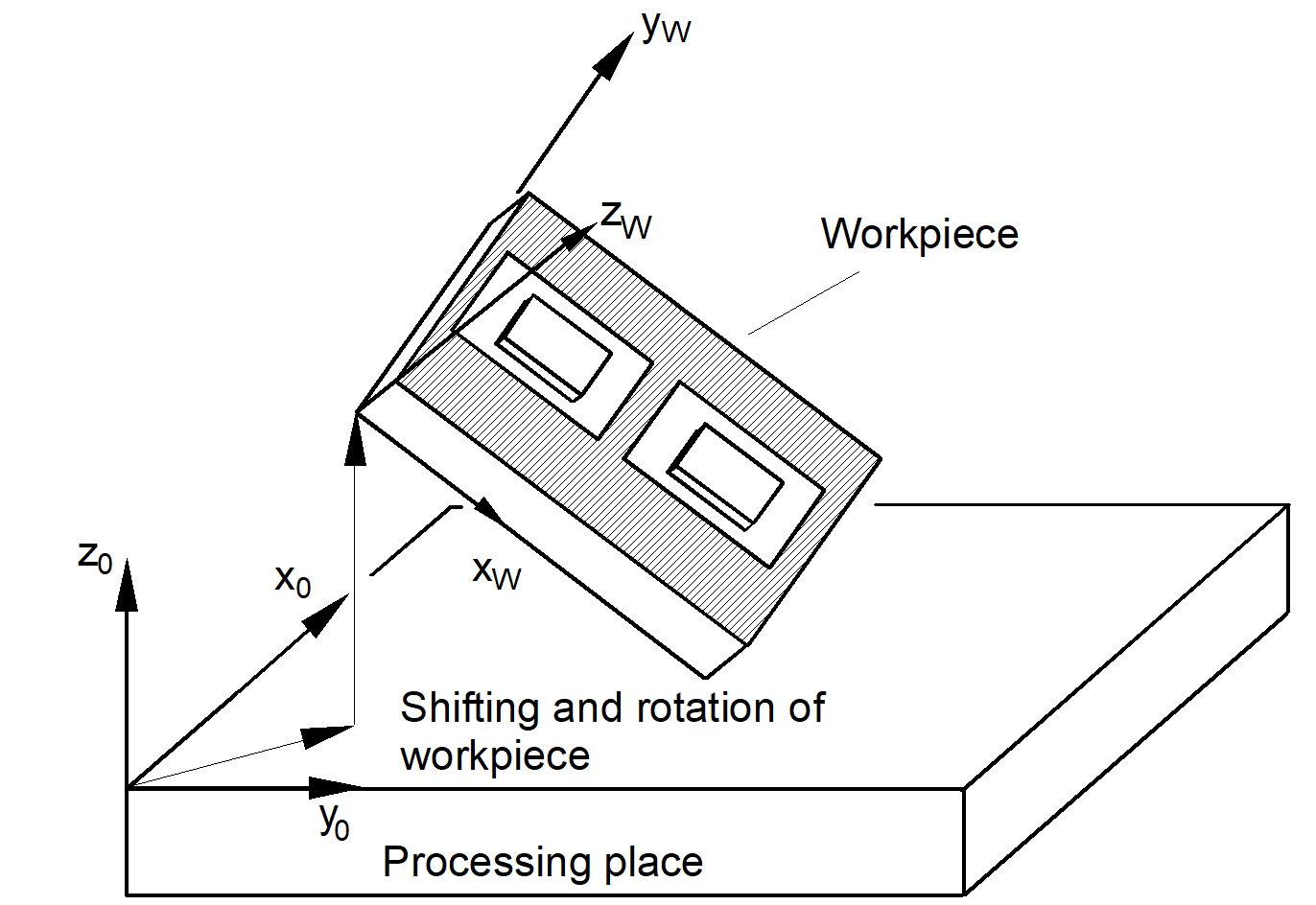

The fixture adaptation coordinate system ACS compensates a sloping position of the workpiece or workpiece palette. The ACS is independent of a CS.
Effectiveness
- Effective up to deselection or up to the end of the program.
- Zero offsets and reference point offsets may be programmed in the ACS. However, they are only valid until the ACS is deselected and they are not stored.
Deselection: #ACS OFF
