AX5000 | Digital Compact Servo Drive · 0 次阅读

X14: Motor brake, thermal contact



Terminal point

Connection

Output current

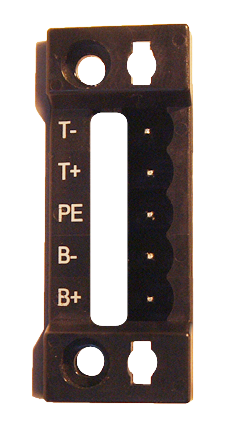

X14: Motor brake, thermal contact 1:

T -

Temp. - *





max. 2.2 A

T+

Temp. + *

PE

Signal pair shield

B -

Brake GND

B+

Brake (Up) +

*) switch, KTY 83-1xx or KTY 84-1xx
