PS1111-2403-0002 | Power supply 24 V DC, 3.8 A, 1-phase, AC 100-240 V · 0 次阅读

Efficiency and losses





AC 100V

AC 120V

AC 230V



Efficiency

Typ.

90.6%

>92.1%

93.8%

At 24V, 3.8A, full load

Average efficiency*)

Typ.

90.5%

91.6%

92.0%

25% at 0.95A, 25% at 1.9A,
25% at 2.85A. 25% at 3.8A

Losses

Typ.

0.3W

0.3W

0.4W

At 24V, 0A (no load)

Typ.

5.0W

4.3W

3.8W

At 24V, 1.9A (half load)

Typ.

9.5W

7.9W

6.0W

At 24V, 3.8A (full load)

*) The average efficiency is based on assumptions for a typical application with the power supply unit operating at 25% of the nominal load during 25% of the time, 50% of the nominal load during 25% of the time, 75% of the nominal load during 25% of the time and 100% of the nominal load during the remaining time.

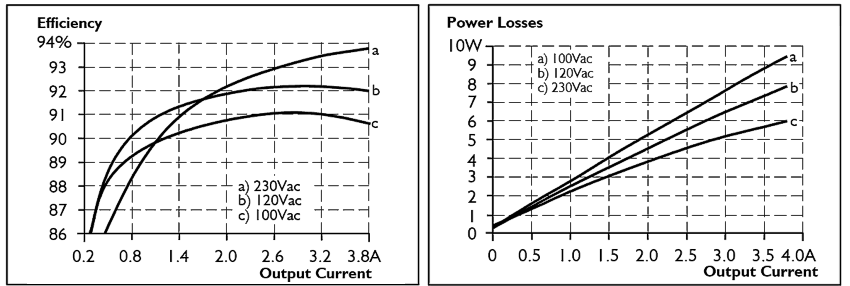

Efficiency and losses 1:
Efficiency over output current; losses over output current

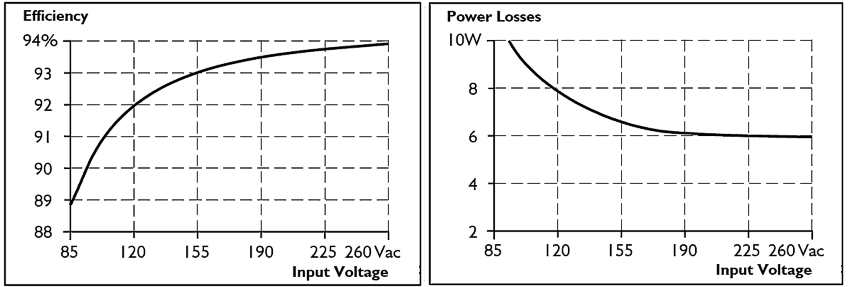

Efficiency and losses 2:
Efficiency over input voltage; losses over input voltage
