1. PS9031-4820-0001 – Buffer Module 48 V, 20 A, 100 ms
  2. Technical data, application notes, wiring
  3. Connection diagrams

Connection diagrams

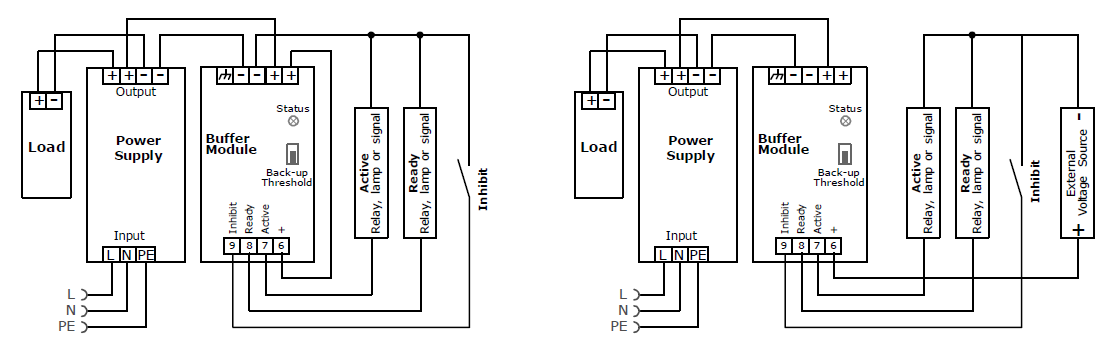

Connection diagrams 1:
General connection diagrams; signals that are supplied by an external voltage source

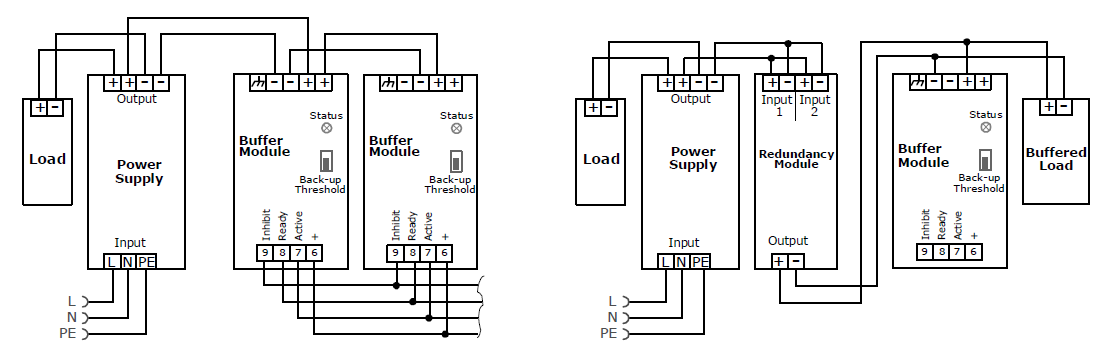

Connection diagrams 2:
Parallel connection of buffer modules; decoupling of buffered lines
