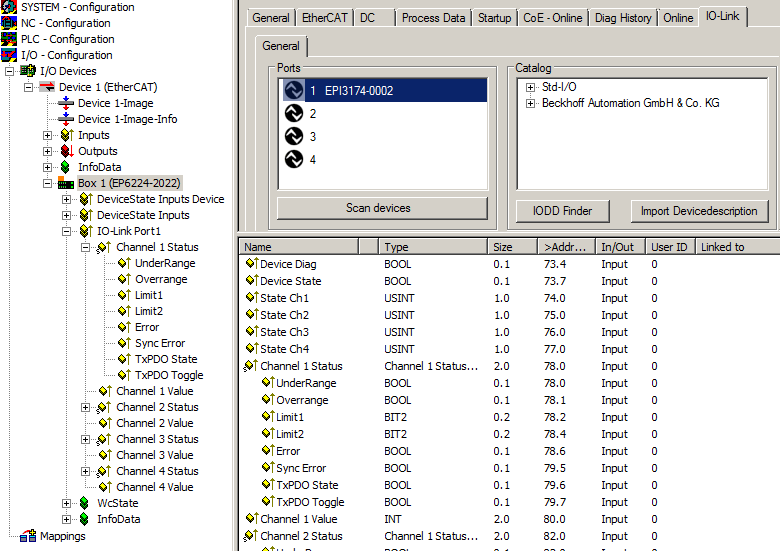

Process image
Channel 1 Status and Channel 1 Value
The IO-Link device is connected to IO-Link port1 of the IO-Link master (EP6224-2022).
- Under Channel 1 Status you will find the status information (16 bits) of the first analog channel. (here as an example the process image of the EPI3174-0002).
- Under Channel 1 Value you will find the analog value (16 bits) of the first analog channel.
- Channels 2 to 4
The data of analog channels 2 to 4 have the same structure as those of the 1st channel.
