Introduction

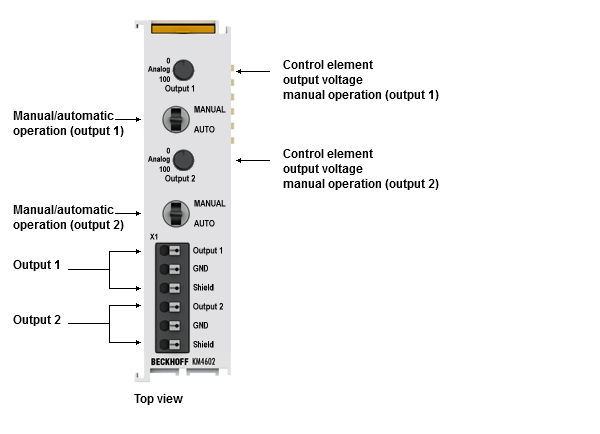

The KM4602 analog output terminal has two potential-free analog outputs (0 to 10 V_DC). Both outputs are internally connected to a common ground.

For each channel a switch enables selection between automatic and manual mode:

• In automatic mode, an analog value is output as a function of the process data.
• In manual mode, the value set via the potentiometer is applied to the output.
  The 24 V_DC (U_L) Bus Coupler supply voltage is also required for manual mode.

The state of the switches can be read by the controller (bit 0 of the status bytes).
