Dimensions

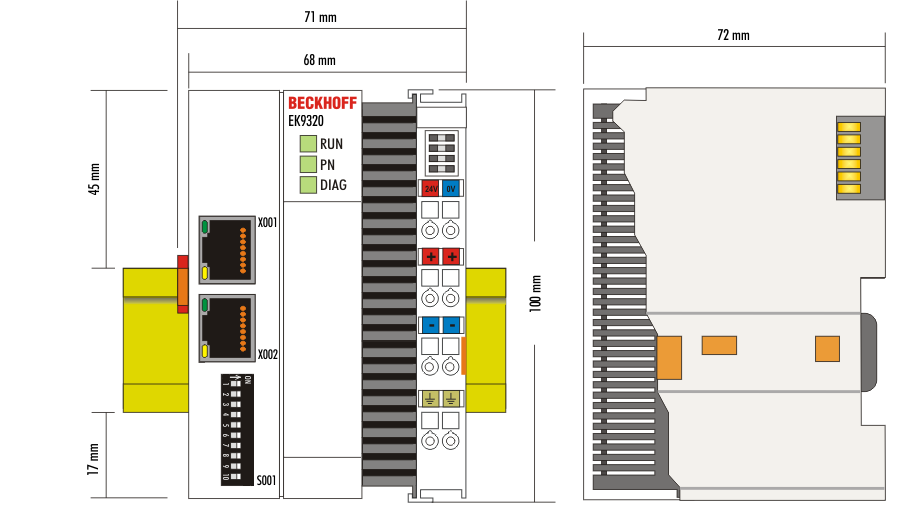

The following illustrations show the dimensions of the Bus Couplers.
Drawings in DWF and STEP format can be found in the Download section of the Beckhoff website.
Fig.7: EK9320 – dimensionsEK9320 | PROFINET Bus Coupler for EtherCAT Terminals · 0 次阅读
Fig.7: EK9320 – dimensions
