Activate configuration

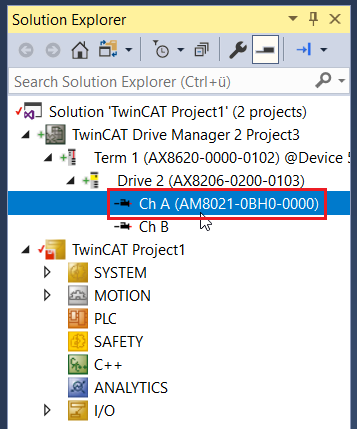

- ►Select drive [Ch A (AM8021-0BH0-0000)]

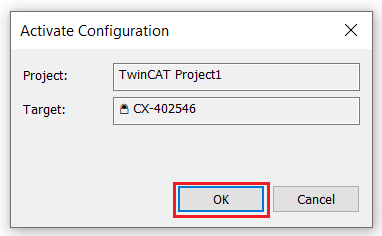

- ►Left-click: "Activate Configuration" in the Visual Studio ribbon
A new "Activate Configuration" dialog box opens.
- ►Confirm with OK
Your configuration is now activated.

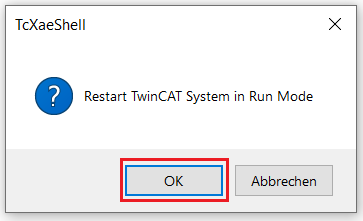

A new dialog box "TcXaeShell" opens.
- ►Confirm with OK
TwinCAT is now in "Run mode".
