Virtual USB Interface- interconnect CP68xx, CP69xx, CP78xx or CP79xx

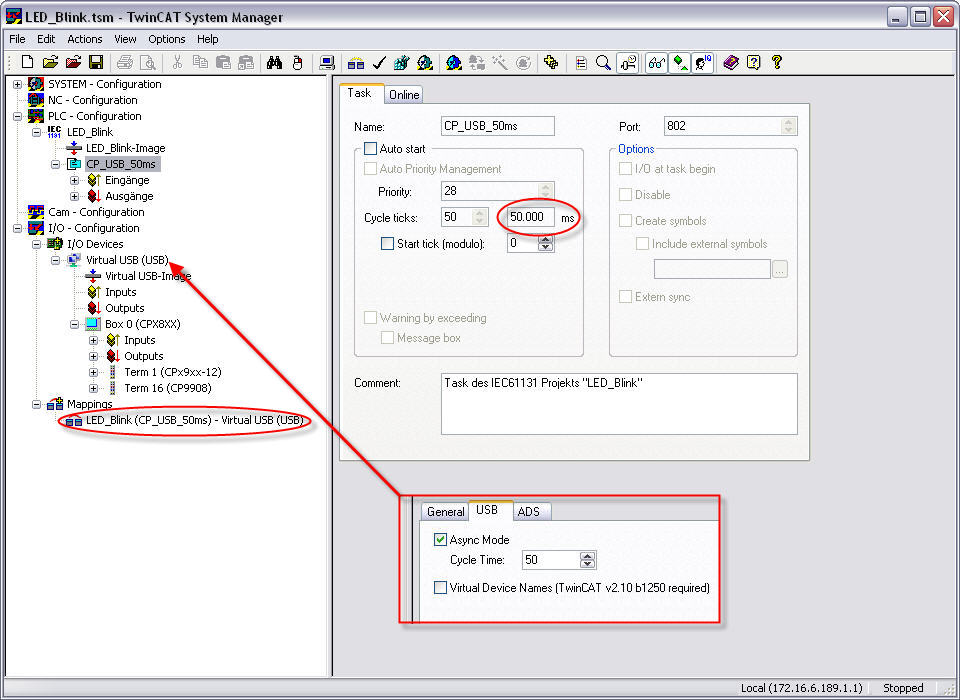

These parameters are valid for Control Panel devices with DVI/USB inteface (CP68xx, CP69xx, CP78xx und CP79xx ) see screenshot below:

• Cycle ticks:
  The PLC cycle time should be between 50 and 80 ms . Use an additional task alternatively .
• Async Mode:
  In case of the availability of one task or due to test purposes use the Async Mode. This mode is not related to other cycles and can connect to a faster task with a cost of a slower i/o process image.
• Mapping:
  Use the mapping to check an unintended connection of an usb device to fast task
