Function

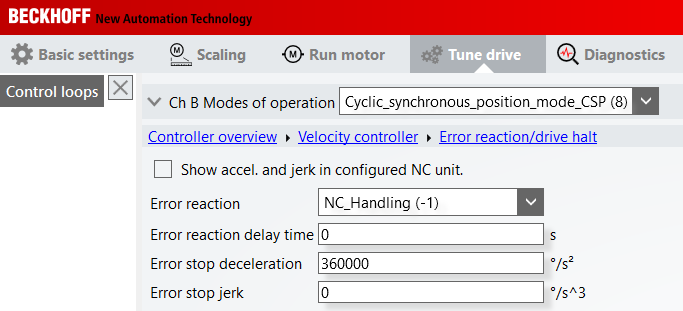

The configuration "Error reaction / drive halt" can be set in Drive Manager 2 in the velocity controller. The default value is a controlled stop ramp with a delay of 1000 revolutions/s². This value is related to the motor shaft.

If the checkbox “Show accel. and jerk in configured NC unit” is activated, the deceleration is displayed in the NC unit.
