Settings
In the selection area for "NC parameter settings" you can size your mechanical system and thus determine the "NC Feed constant".
- ►Select Rotatory movement
- ►Enter rotary table from example with 360°

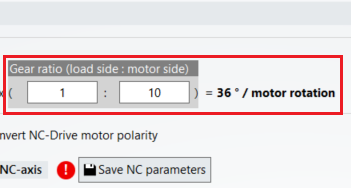

- ►Set gear ratio 1:10
- ►Confirm settings with "Save NC parameters"
You have successfully sized your mechanical system. Your "NC Feed constant" is 36° per motor revolution.
